The Award Winning Zt-2 Model 2010 Wideband Datalogging System

ORDER NOW

The Zeitronix Wideband Air/Fuel ratio meter and datalogging system is a high quality, stand-alone system for use with carbureted and electronic fuel injection engines. Zt-2 Wideband Kits provide the best bang for your buck delivering unmatched quality, features and capabilities for very reasonable prices. Our system provides the accuracy of a Dyno Air/Fuel reading right in your vehicle as well as multiple engine parameters. Our base system is very easy to install and includes the wideband oxygen sensor, controller, wiring hardware, and the software required to start datalogging and tuning immediately.

Supports Air/Fuel ratio as AFR/Lambda, plus RPM, Vacuum, Boost, Exhaust Gas Temperature, Throttle Position, 0-5 volt sensors, Air/Fluid temperature sensors and Oil/Fuel pressure sensors. Tune fuel injected and carbureted engines.

Very simple installation - connect two wires to +12V and ground and place the O2 sensor in the exhaust stream and you are ready to read AFR! A simple LED indicator displays off, warm-up and running modes. Side LED Image

Cut your tuning time in half!

Click for a video of the Zt-2 Wideband System, LCD Display and Data Logging software.

The Best Wideband for your Tuning Setup
No matter if you have a stand alone engine management system, a piggy back fuel control or a carbureted engine, the ZT-2 Wideband Air Fuel Ratio Meter is a must for serious tuners! Finally you can tune for more power, closer to the edge, precisely monitoring Air/Fuel ratio Boost, EGT, RPM, throttle position and more. The Zeitronix Data Logger (ZDL) software can be utilized as a real-time display alongside the LCD Display, ZR-2 Multi-Gauge or the DashDAQ display with datalogging for up to 9 hours at a blazing rate of 65 samples per second per input.

On Board Diagnostics (OBDII) is not required but may be monitored through use of the DashDAQ II XL display which reads and clears engine error codes, logs Zt-2 Wideband data and OBDII data and has many additional performance features.

Multiple Widebands with Black Box Data Logger and Optional Display
Dual channel AFR readings are available with multiple display and datalogging options supporting the ZR-2 Multi Gauge, LCD display, Black Box Data Logger and more.

Fail-Safe Operation
Add robust failsafe features using the ZAVT-1 Warning/Trigger Box and optional relay. The Zt-2 Wideband controller will monitor user set levels triggering the ZAVT-1 Warning/Trigger box and optional relay if one or a combination of values exceeds limits. Trigger a failsafe condition on any Zt-2 input including AFR, Boost, RPM, TPS, EGT, Oil/Fuel Pressure, Air/Water temperatures and more. Create a failsafe gauge with the Zt-2 controller watching both displayed values and any other connected sensors or inputs. This simple failsafe safeguard is a great way to protect your engine, hardware and time investment.

Fail-safe setup
ZR-2 Multi Gauge with Zt-2 Controller
in a failsafe configuration using the
ZAVT-1 Warning/Trigger Box
.


Fully digital, smallest wideband O2 controller and datalogging system in the world!
Zt-2 is about the size of 1" thick business card. Extremely compact design for installation where space is a premium.

Zt-2 SpecsZt-2 Controller

  • 0.1 AFR accuracy
  • Operating voltage 10V to 18V
  • Switching power supply for oxygen sensor heater
  • Precise sensor temperature control
  • Reverse polarity protection
  • Integrated self-resetting fuse
  • Positive lock connectors
  • Protected inputs and outputs
  • Flexible Plug and Play Sensor Harness with a small, easy to route through the fire wall, connector
  • Wideband Oxygen Sensor included
  • Easy to install plug and play kit
  • Warning Alarms and TriggersMade in USA

Inputs/Outputs:

  • Bosch Wideband O2 sensor Input
  • Linear Wideband Output AFR = Volts * 2 + 9.6
  • Serial data output to the Zeitronix LCD, ZR-1 AFR, and ZR-2 Multi-Gauge Displays
  • Serial data output for real time datalogging. PC laptop,Black Box or nDash required.
  • RPM Input (tachometer, primary side ignition coil, crank, cam sensor).
    The RPM input works in any car and any ignition system. No additional adapters needed!
    Wideband Oxygen Sensor
  • Throttle Position Sensor Input
  • Boost (MAP) Sensor Input:
    - 50 PSI (3.5 Bar) MAP Sensor, or 75 PSI (5.0 Bar) MAP sensor or
     150 PSI (10 Bar) MAP sensor
  • Exhaust Gas Temperature (EGT) probe Input
  • User1 Input:
    - 0-5 volt analog input. Voltage data is viewable on all models of the LCD display.
      Software support for the display of Zeitronix pressure sensors.
    - Customized data conversions can be entered to match 0-5 volt sensor specifications.
      All converted User1 data values are displayed only in the software.
  • User2 Input:
    - 0-5 volt analog input OR configurable to be used with Fuel/Oil/Boost pressure sensors and Air/Water/Oil/Transmission temperature sensors.
    - Data is displayed on the 2010 Model LCD and ZR-2 Multi-gauge as a pressure or temperature.
    - Zeitronix Data Logger software will display and log data according to sensor type.
    - Customized data conversions can be entered to match 0-5 volt sensor specifications.
      Customized data conversion values are displayed in the Zeitronix Data Logger software only.
  • Warning Output for use with ZAVT-1 warning/trigger box
  • 5V output for sensors
Input / Output Range
Lambda 1.43 to 0.64 Wideband
AFR 21.0 to 9.5 Wideband
Vacuum 25.5 inHg (650 mmHg)
50 PSI (3.5 Bar) MAP Sensor Vacuum to 35.3 PSI (2.4 Bar) pressure
75 PSI (5 Bar) MAP Sensor Vacuum to 60 PSI (4.1 Bar) pressure
150 PSI (10 Bar) Pressure Sensor 0 to150 PSI Gauge (0 to 10 Bar)
EGT 392 F - 2200 F or 200 C - 1200 C
Analog Wideband Output 0 - 5V
Throttle Position 0 -100%
RPM 0 - 18,000
User1 Input 0 - 5V
(additional sensor display support through ZDL software)
User2 Input
(Zt-2 Model 2010 -- sold 10/15/2009 and later)
0-5V
Configurable: 50/75/150 PSI Sensors, Air/Fluid Temperature Sensors
Shown on LCD, ZR-2, nDash, ZDL
(additional sensor display support through ZDL software)
Warnings Output 0-5V, 4mA output (see ZAVT-1 for triggering additional hardware)

PURCHASE


ZDL Datalogging Software
The Zt-2 communicates with a PC Laptop via the serial port (USB to Serial adapters may be used). The ZDL logging software records up to 9 hours of data per log file. May screen layout options are available including Dashboard, overlapped or non-overlapping plots with markers and text. The Zeitronix Data Logger software uses a black background for low profile easy to read night tuning. Logging start, stop and pause are accessible from easy keyboard shortcuts. Excel and text file data export available.

Win98/NT/2000/ME/XP/Vista/Windows 7 compatible.
You do not need P4, P3 or even P2 laptop. Leave your new laptop at home and dedicate the old one to car tuning. We give you well optimized software that will run quickly on any hardware capable of running Win95 and up.
Download

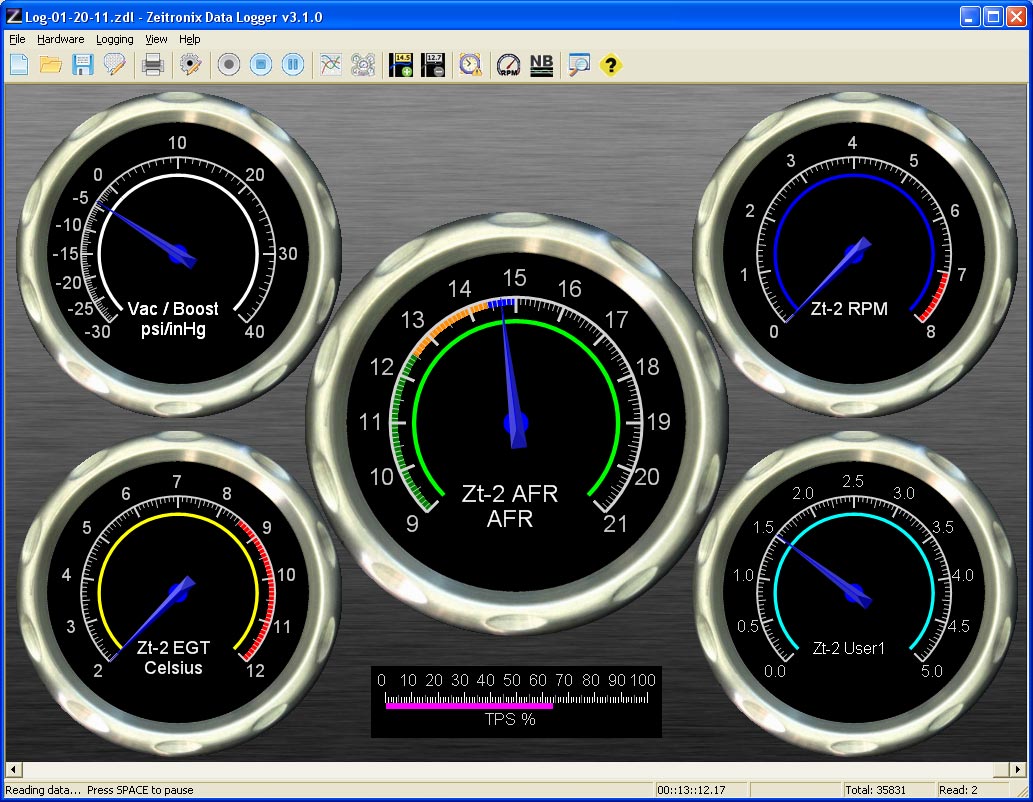

ZDL Dash ZDL Overlapped Plots ZDL Individual Plots ZDL Text Display

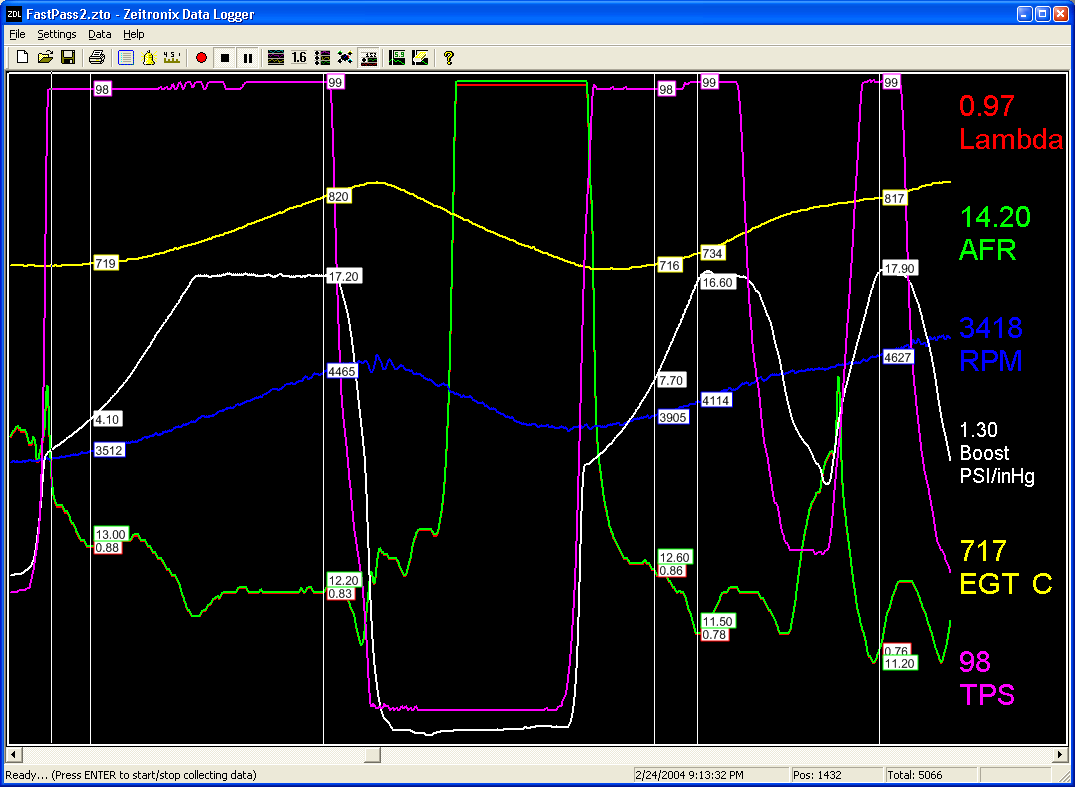

Dashboard View Overlapped Plots
and indicator lines

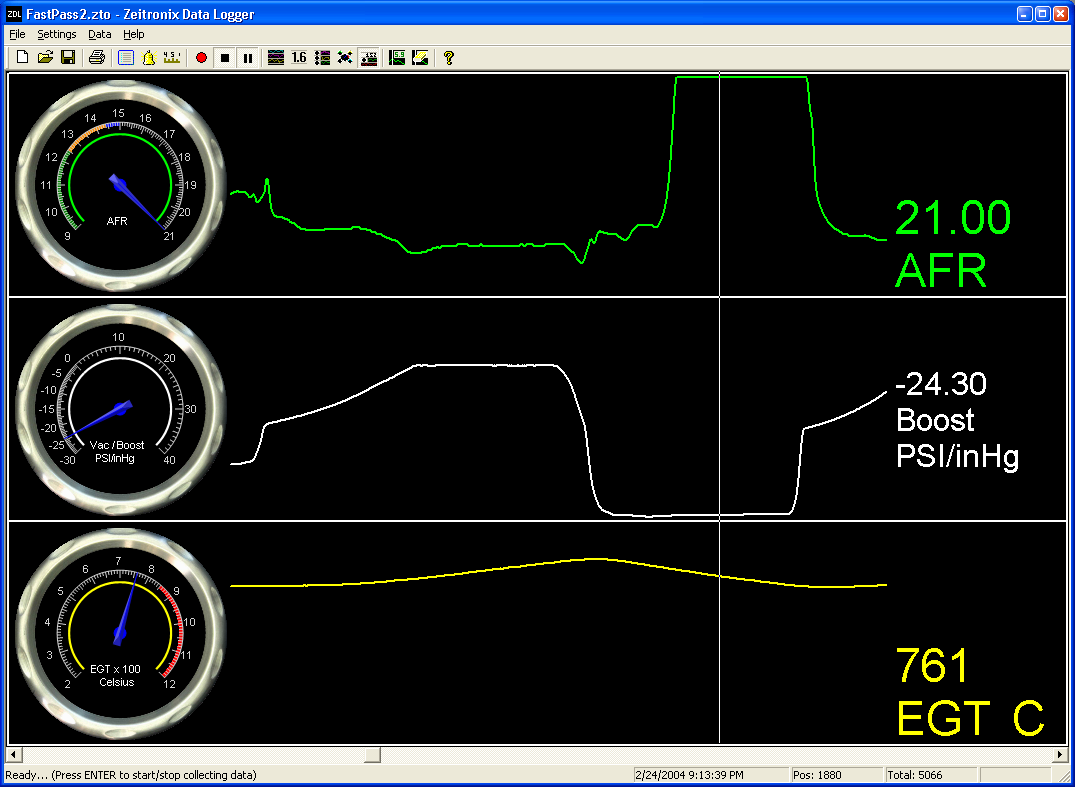

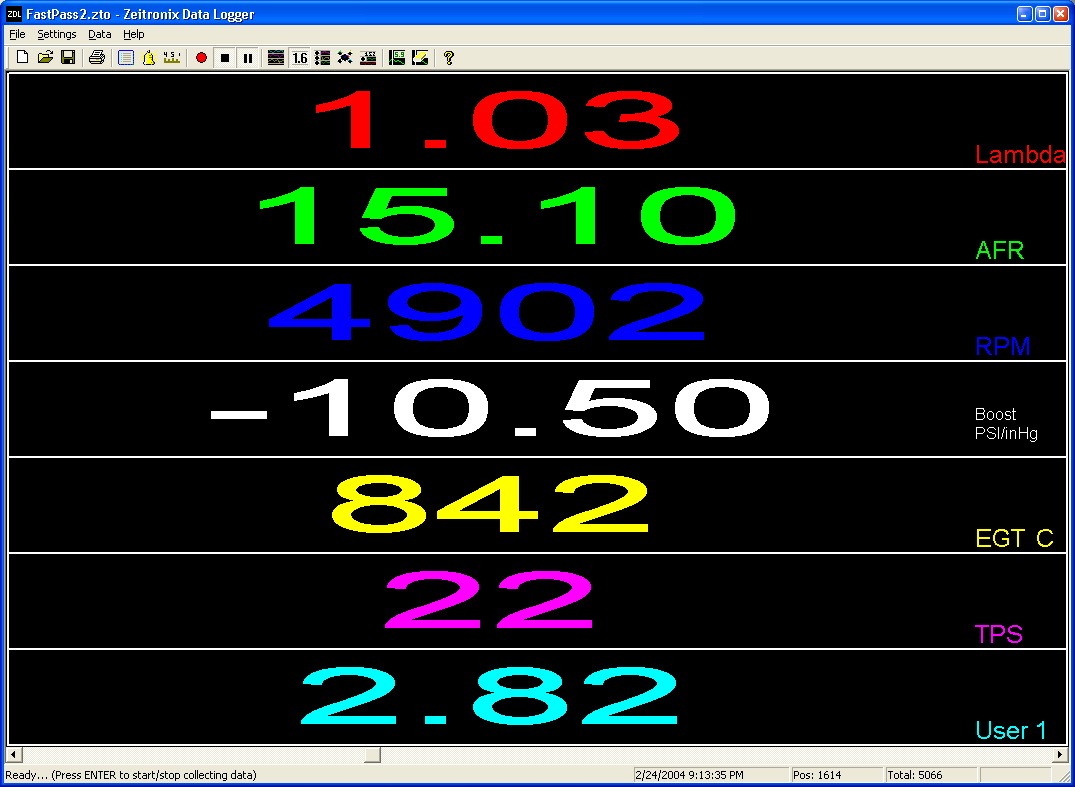

Individual Plots Digital Display

Zeitronix Displays
Zeitronix offers both LCD Display and gauge style displays such as the ZR-1 AFR/Lambda Gauge and ZR-2 Multi Gauge, a Hacker/Tweaker AFR display and the DashDAQ touch screen display.
Plug and play to nGague Display with additional connecting cable.

Zeitronix displays offer clean and easy installation with power and data through a single wire connecting directly from the Zt-2 data port. No extra wires for power connections!

All displays install easily with included splitters allowing for up to 3 displays and simultaneous data logging.

Visit our customer gallery for a look at some Zt-2 Wideband and display installations, customer vehicles, videos and quotes.

LCD Display
LCD Display

Multiple ZR-2 Gauge Setup
Up to 3 ZR-2 Multi Gauge Displays Supported!


Exhaust Gas Temperature (EGT) Sensor
Zt-2 reads exhaust gas temperature through a standard K thermocouple, the same as used by most aftermarket EGT gauges. You can retrofit your EGT probe with supplied Zt-2 style 2-pin connector or purchase a new probe from us. Moreover, we offer 8' chromel-alumel extension wire with the Zt-2 style connector in case you need to extend your EGT probe.

Why do I need an Exhaust Temperature Sensor?
Leaner mixture burns hotter giving you more power. Too much heat and things begin to melt. This is when your car is the fastest!. The Zt-2 is equipped with the EGT probe input. The LCD and logging software display the EGT information so take an advantage of it. We offer very economic, high quality, low mass, fast responsive EGT probe which plugs right into the Zt-2. This is a must if you are tuning the car for maximum power. You will be surprised how close to the edge you are running
You will need to tap the headers with 1/8 NPT tap.
Also see EGT Probe Installation Tips.


Boost MAP Sensor
Absolute pressure MAP sensors read from full vacuum so a 50 PSI range MAP sensor will read from -14.7 PSI to 35.3 PSI gauge pressure at sea level (a 50 PSI pressure range). Vacuum is displayed using the units inHg or mmHg.

The Zt-2's high resolution boost input in conjunction with a Zeitronix Boost Sensor is more accurate than most boost gauges.
3.5 Bar (50 PSI) MAP, 5.0 Bar (75 PSI) MAP, and 10 Bar (150 PSI) gauge pressure sensors are all supported on the Zt-2 Wideband boost input.
See our web page for Zeitronix pressure sensors for additional sensor details.

NOTES:
The LCD Display, ZR-2 Multi Gauge and various other displays are option and not required for Zt-2 operation. Additional sensors such as the EGT probe, Boost/Vacuum (MAP) sensor, Oil/Fuel pressure, and Air/Fluid temperature sensors are optional and are also not required for Zt-2 operation.
A minimal Zt-2 setup may be used with only an oxygen sensor connected for AFR/Lambda output, for instance to 3rd party engine management systems. For such application consider using the Zt-3 Wideband, which supports only AFR/Lambda sensor readings.



Items included with each
Zt-2 Kit order:
  • Zt-2 Wideband Controller
  • Bosch 5 wire Wideband Oxygen Sensor
  • Oxygen Sensor Harness (10 feet length), *Substitute a 3ft or 20ft oxygen sensor harness.
  • Signal Harness
  • Serial datalogging cable with RJ-12 to DB-9 converting plug
  • Zeitronix Data Logger software
  • Instructions
  • 2 pin connector for the EGT input
Optional items for Zt-2 Wideband Kits
  • Wideband LCD display, ZR-1, ZR-2 gauges, Hacker/Tweaker Display, nDas Touch Screen Display
  • Boost/Vacuum (MAP) Sensor (50 psi/3.5 bar or 75 psi/5.0 bar MAP sensors)
  • EGT Probe
  • Fuel Pressure Sensor (150 psi / 10 bar Gauge Pressure sensor)
  • Oil Pressure Sensor    (150 psi / 10 bar Gauge Pressure sensor)
  • Air Intake Temperature Sensor
  • Coolant Temperature Sensor
  • Oil Temperature Sensor
  • Transmission Temperature Sensor
  • ZAVT-1, Zeitronix Audio-Visual Warning and Trigger Box for failsafe operation

Emissions
This part is for monitoring only and does not affect vehicle emissions. Check your local regulations.
