Zeitronix nDash Touch
Screen
Display
Full color, OBDII compatible Touch Screen Display for the Zt-2 and Zt-3 Wideband AFR
Meters
|
- Zeitronix nDash display is
Preconfigured for easy Plug and Play use with the Zt-2,
Zt-3 or combination of both.
- Display and data log AFR, RPM, EGT,
Vacuum/Boost, TPS,
and configurable User Inputs from one or two
Zt-2s
- Run a
Dual
Zt-2 or Zt-3 configuration for left and right cylinder bank AFR values!
- 4.4" Touch-Screen offers 480x272
resolution using TFT LCD technology.
- 24-bit full color display with
contrast ratio of 350:1
- Dimensions are 5” x 3” x 0.75”, weight
is only 0.5 lbs, (127mm x 77mm x 19mm, 275 grams)
- Full OBDII support for display of
parameters such as Mass Air Flow, Spark Advance, Coolant
Temperature, and many more! (OBDII is not required for use
with the Zt-2 and Zt-3.)

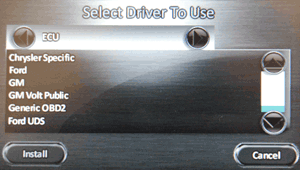

- Generic OBDII, Enhanced Ford, Chrysler and
GM drivers.
- For additional two channels nDash analog
inputs are mapped to Zeitronix sensors.
- Data logging support onto
removable memory card -- no laptop or PDA required.
- Auto Adjusting backlight, night mode, and low power standby.
- Calculate Horsepower, Torque, 0 to 60 Performance, MPG and set configurable trip counters.
- Diagnose and clear check engine light
error codes.
- OBDII and Plug and Play Zeitronix Zt-2
cables included.
- N-Dash
Zt-2 license included
- Simple and secure
windshield-mounted display.
|
 |
|
|
Examples of Configurable Screens
|
 |

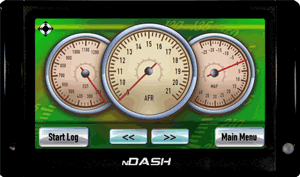

- Full color analog
gauges
- Different 'skins'
allow you to change the look and style of your display.
- Mix and Match
OBDII and Zt-2 data.
|
|
 |
- Graph Zt-2 data points in real time:
Wideband AFR-Lambda, RPM, TPS, EGT, Vacuum-Boost, Oil Pressure, Fuel
Pressure, Oil Temperature, Water Temperature, Air Intake Temperature
and more!
|
|
 |
- Many other page layouts and styles
available.
|
|
Data Logging
- Log Zt-2, Zt-3 data and OBDII data on optional MMC/SD memory cards (up to 4GB in size).
- Supports Full OBDII for 1996 and newer vehicles
(Zt-2 parameters from any vehicle)
- Log and View up to 24 parameters at
once for hours at a time
- Zt-2 to N-Dash connector cable
included
- Connect two to log left and right
cylinder banks in our Dual Zt-2
configuration
|
 |
|
|

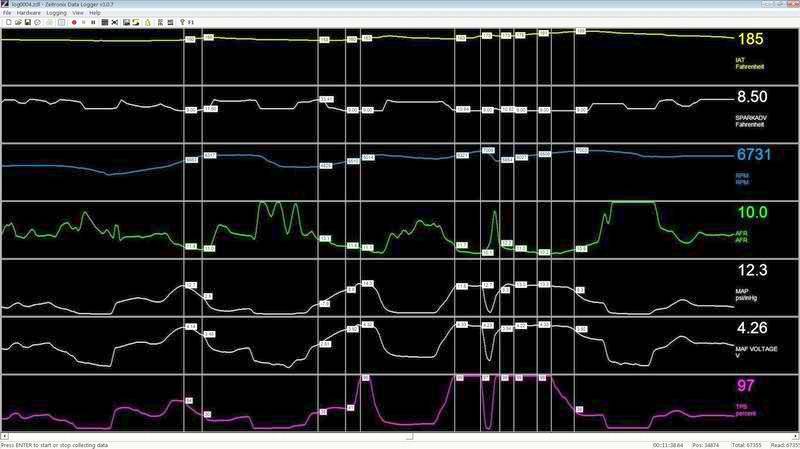

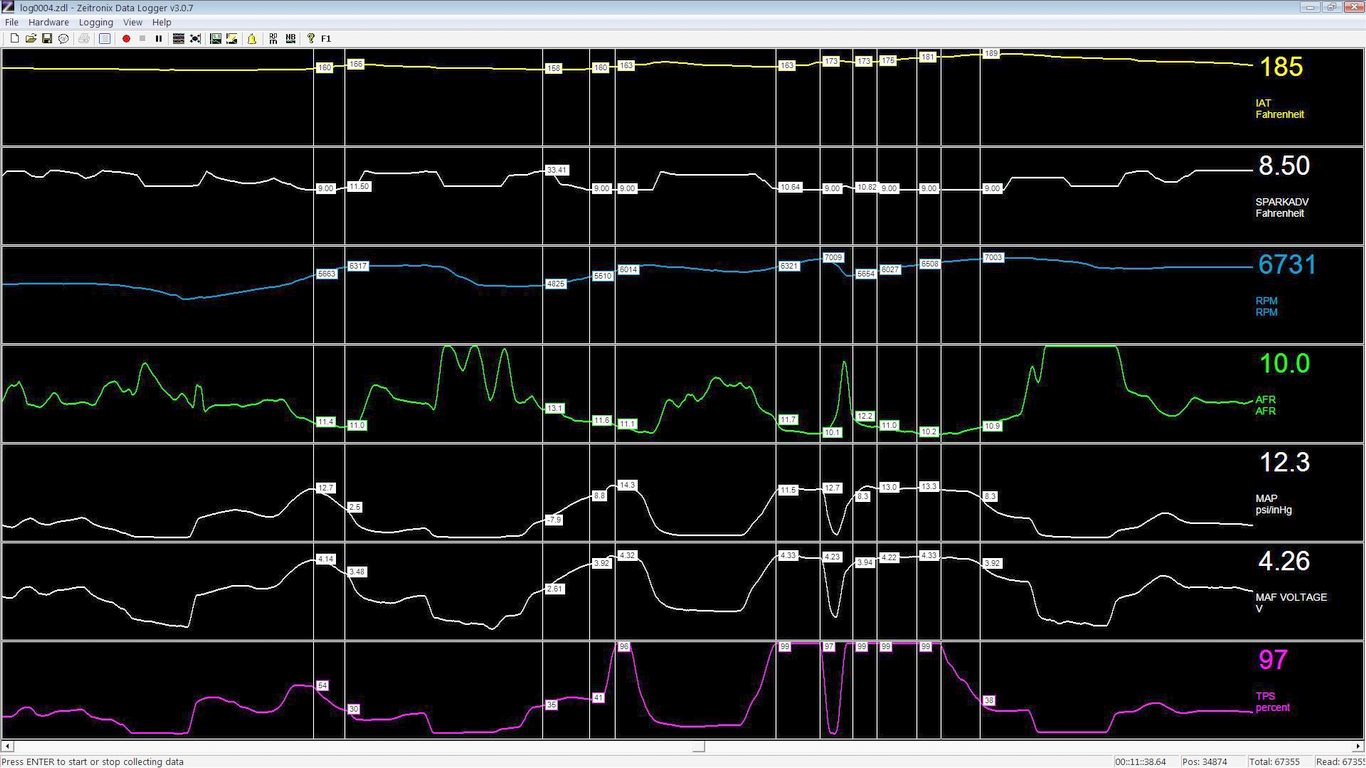

Example Lean AFR nDash log file opened in the
Zeitronix Data Logger PC Software
 |
|
Zeitronix nDash Packages
| Zt-2 + nDash Bundle |
Complete Zeitronix Data logging
System with nDash display plus connector cable. The
Display is preconfigured with Zeitronix driver and screens. |
Buy Now! |
| nDash Display |
Add a N-Dash to your Zt-2
system, includes nDash™ and cable required to connect to the
Zt-2. The Display is preconfigured with Zeitronix driver and
screens. |
Buy Now! |
|
| |
|
