The Zeitronix Wideband Air/Fuel ratio meter and datalogging system is a high quality, stand-alone system for use with carbureted and electronic fuel injection engines. The Zt-3 CAN supports CAN Bus communication for easy connection and logging through other CAN Bus devices. See CAN Bus specs below The new Zt-3 has the same high quality, high precision air fuel ratio readings as our signature Zt-2 wideband. The Zt-3 supports wideband air fuel ratio and lambda readings, adjustable simulated narrowband output and a new configurable linear wideband output for ease of use with engine management systems and 3rd party gauges. The new Zt-3's dimensions are only 3 by 2 by 1 inches.  The case includes slots case for easy zip tie mounting in a tucked away location. Installation instructions Zeitronix Data Logger Software AIM XC1 files for Zt-3 CAN Bus AEM CD-5 CD-7 files for Zt-3 CAN Bus MegaSquirt Setup for Zt-3 CAN Bus	SEMA Awarded Zt-3 CAN Bus AFR / Lambda Meter Dimensions:  3" x 2" x 1" (76mm x 50mm x 25mm)

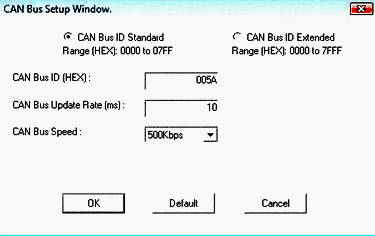

Supported CAN Bus Specifications: User selectable CAN Bus Speed: 1Mbps, 500 Kbps, 250 Kbps, 125 Kbps User selectable CAN Bus ID:  Standard (11 bit) and Extended (29 bit) User selectable CAN Bus address:  Standard 0x0000 to 0x7FF Extended 0x0000 to 0x7FFF User selectable CAN Bus update rate:  1ms (1000Hz) to 250ms (4 Hz) 120 ohm termination- None CAN DATA: Data 0, 1 : Lambda 16 bit (Big Endian, Motorola) x 0.001 Data 2 : Lambda 8 bit x 0.01 Data 3 : AFR 8 bit x0.1 Data 7: Lambda sensor status 0x00 Sensor OK 0x01 Sensor cold (warm up) 0x02 Sensor too hot 0x04 Sensor heater circuit open 0x08 Sensor heater circuit shorted 0x10 Sensor maxed at rich lambda	Zt-3 CAN Bus Default Settings: CAN Bus ID Standard (11 bit) CAN Bus ID (HEX) 0x005A CAN Bus Update Rate 10 ms (100 Hz) CAN Bus Speed 500 Kbps
Third party CAN Bus display examples
AIM MXS Dash connected via CAN Bus to ECA CAN Ethanol Content E% Fuel Temperature (C) Zt-3 CAN AFR 8 bit (1 decimal) Lambda 16 bit (3 decimals) AIM XC1 files for Zt-3 CAN Bus
AEM CD-5 Dash connected via CAN Bus to ECA CAN Ethanol Content E% Fuel Temperature (C) Zt-3 CAN AFR 8 bit (1 decimal) Lambda 16 bit (3 decimals) AEM config files for Zt-3 CAN Bus
Configurable Analog Wideband Output Match the Zt-3 Wideband output to a third party system, data logger or a 3rd party gauge. Volts  AFR

Very simple installation - connect two wires to +12V and ground and place the O2 sensor in the exhaust stream and you are ready to read AFR!  A simple LED indicator displays off, warm-up and running modes. We are adding Can Bus configuration files for CAN Bus Displays, Loggers and ECUs. AIM XC1 files for Zt-3 CAN Bus Additional information is available for setting up the configurable linear wideband output with your particular engine management system.

Zt-3 Specs

• 0.1 AFR accuracy
• Operating voltage 10V to 18V
• Switching power supply for oxygen sensor heater
• Precise sensor temperature control
• Reverse polarity protection
• Integrated self resettable fuse
• Positive lock connectors
• Protected inputs and outputs
• Flexible Plug and Play Sensor Harness with a small, easy to route through the fire wall, connector
• Kits available with or without the wideband oxygen sensor included
• Easy to install plug and play kit
• Narrowband Output
• Configurable Wideband Analog Output

Inputs/Outputs:

• Bosch Wideband O2 sensor Input
• Simulated Narrowband Output
• Linear Wideband Output (configurable with a default setup of AFR = Volts * 2 + 9.6
• Serial data output to the Zeitronix ZR-1 AFR, DashDAQ and nGauge displays
• Serial data output for real time datalogging (PC laptop required)
• CAN Bus High and Low

Zeitronix Datalogging Software
The Zt-3 communicates with the PC Laptop via the serial port. The Zeitronix Data Logger (ZDL) software records up to 9 hours of data per single file. Many different screen display options are available including plots, text and dashboard views and uses a black plot background for easy night tuning. Logging start, stop and pause are accessible from keyboard shortcuts. The ZDL software supports excel CSV and text data export.

Win98/NT/2000/ME/XP/Vista/Windows 7,8,10 compatible.
You do not need P4, P3 or even P2 laptop. We understand that you want to leave your new laptop at home and dedicate the old one to car tuning. We give you well optimized software. If your laptop is capable of running Win95 and up it is good enough for the Zeitronix logging software.

The digital gauge screen option could be used when purchasing the Zt-3 without a display.

Zeitronix Data Logging Software Download.

Standard Zt-3 CAN Kit:

• Zt-3 CAN Wideband Controller
• Bosch 5 wire Wideband Oxygen Sensor
• Oxygen Sensor Harness (10 feet length) *Substitute a 3ft or 20ft oxygen sensor harness.
• Signal Harness
• Serial datalogging cable with RJ-12 to DB-9 converting plug
• Instructions

• CAN Bus Displays and Loggers
• ZR-1AFR and Lambda Gauge
• ZR-3 AFR Gauge
• Hacker Display
• nDash Touch Screen Display
• nGague Display
